Savox

SC1201MG - Hi Torque Coreless Standard Digital Servo .12/347 @ 6v

$68.99$84.99
  • SAVSC1201MG-Hi-Torque-Tall-Case-Coreless
  • SAVSC1201MG-Hi-Torque-Tall-Case-Coreless
  • SC1201MG - Hi Torque Coreless Standard Digital Servo .12/347 @ 6v

Savox

SC1201MG - Hi Torque Coreless Standard Digital Servo .12/347 @ 6v

$68.99$84.99
1

Description

Features:

  • Metal gear train ensures durability and longevity.
  • Great replacement for RTR crawler, truck and buggy servos.
  • Excellent choice for budget-conscious customers.
  • Same height as SW0231MG.

    • Specifications:
  • Torque @ 4.8v - 20.0kg/278.0oz-in
  • Torque @ 6v - 25.0kg/347.0oz-in
  • Speed @ 4.8v - 0.19 sec/60 deg
  • Speed @ 6v - 0.16 sec/60 deg

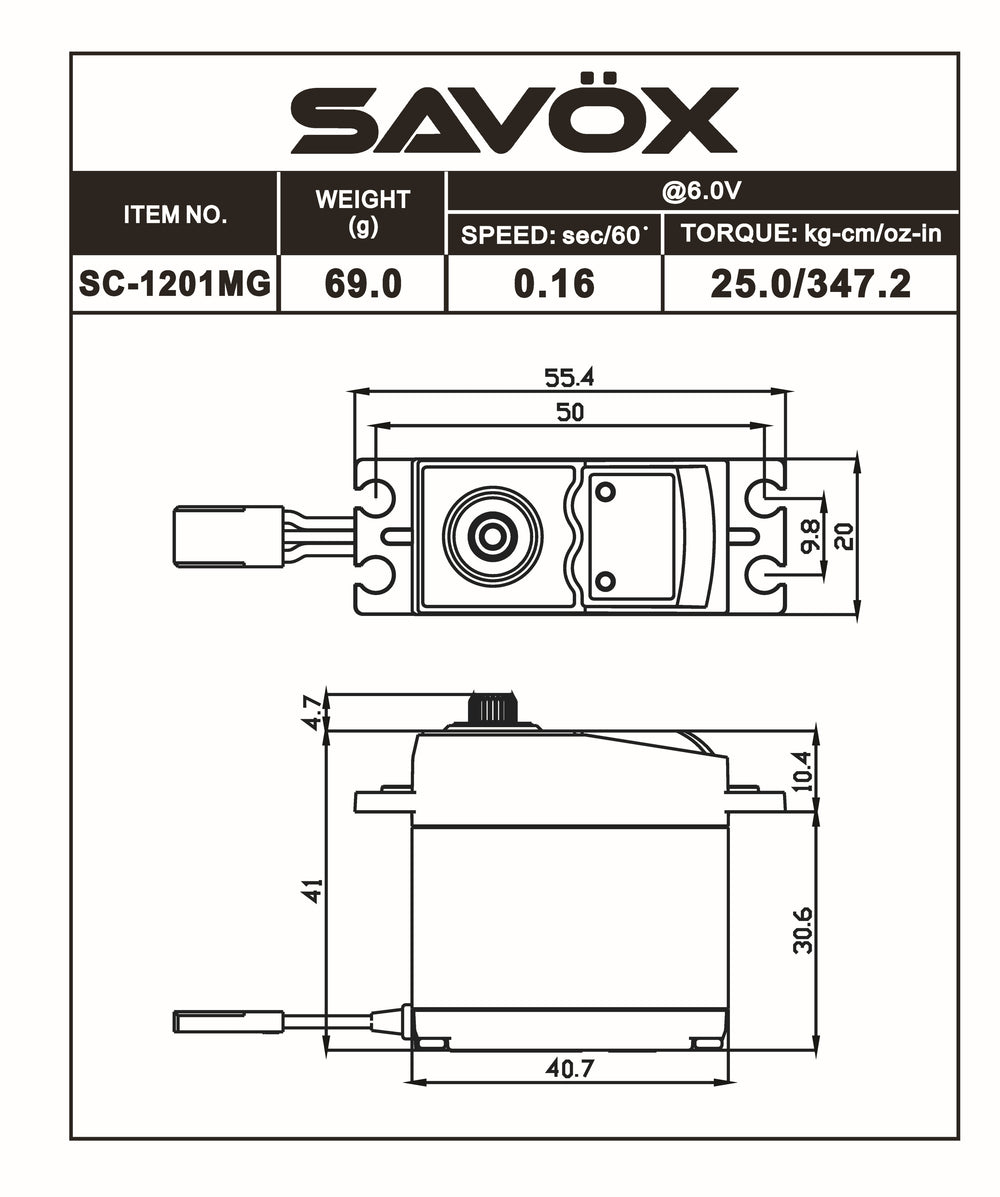

  • Dimensions L x W x H (mm): 40.7 x 20.0 x 42.4
  • Weight: 69.0g

    • Technical Details



  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 300mA @4.8V, 350mA @6.0V
  • Stall Current (at locked): 8000mA @4.8V, 10,000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 164° (800 → 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless

    • 1 Year Warranty

    Savox servos are backed with a warranty for 1 year after purchase (see warranty page for details)
