Savox

SC1251MG-BE - DISCONTINUED - Please see SC1251MGP-BE for replacement

$68.99$84.99
  • SAVSC1251MG-BE-Black-Edition-Low-Profile
  • SAVSC1251MG-BE-Black-Edition-Low-Profile
  • SC1251MG-BE - DISCONTINUED - Please see SC1251MGP-BE for replacement

Savox

SC1251MG-BE - DISCONTINUED - Please see SC1251MGP-BE for replacement

$68.99$84.99
1

Description

DISCONTINUED, PLEASE CLICK HERE FOR REPLACMENT!

The SC-1251MG-BE is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution along with an all black color for a stealth look in RC cars.

Features:

  • Metal gear train ensures durability under harsh situations.
  • Ideal for 1/10 on road vehicles.
  • Sleek black design with laser etching and a shorter 60mm black lead wire
  • Aluminum case provides cooler operating temperatures.

    • Specifications:
  • Torque @ 4.8v - 7.0kg/97.2oz-in
  • Torque @ 6v - 9.0kg125.0oz-in
  • Speed @ 4.8v - 0.10 sec/60 deg
  • Speed @ 6v - 0.09 sec/60 deg

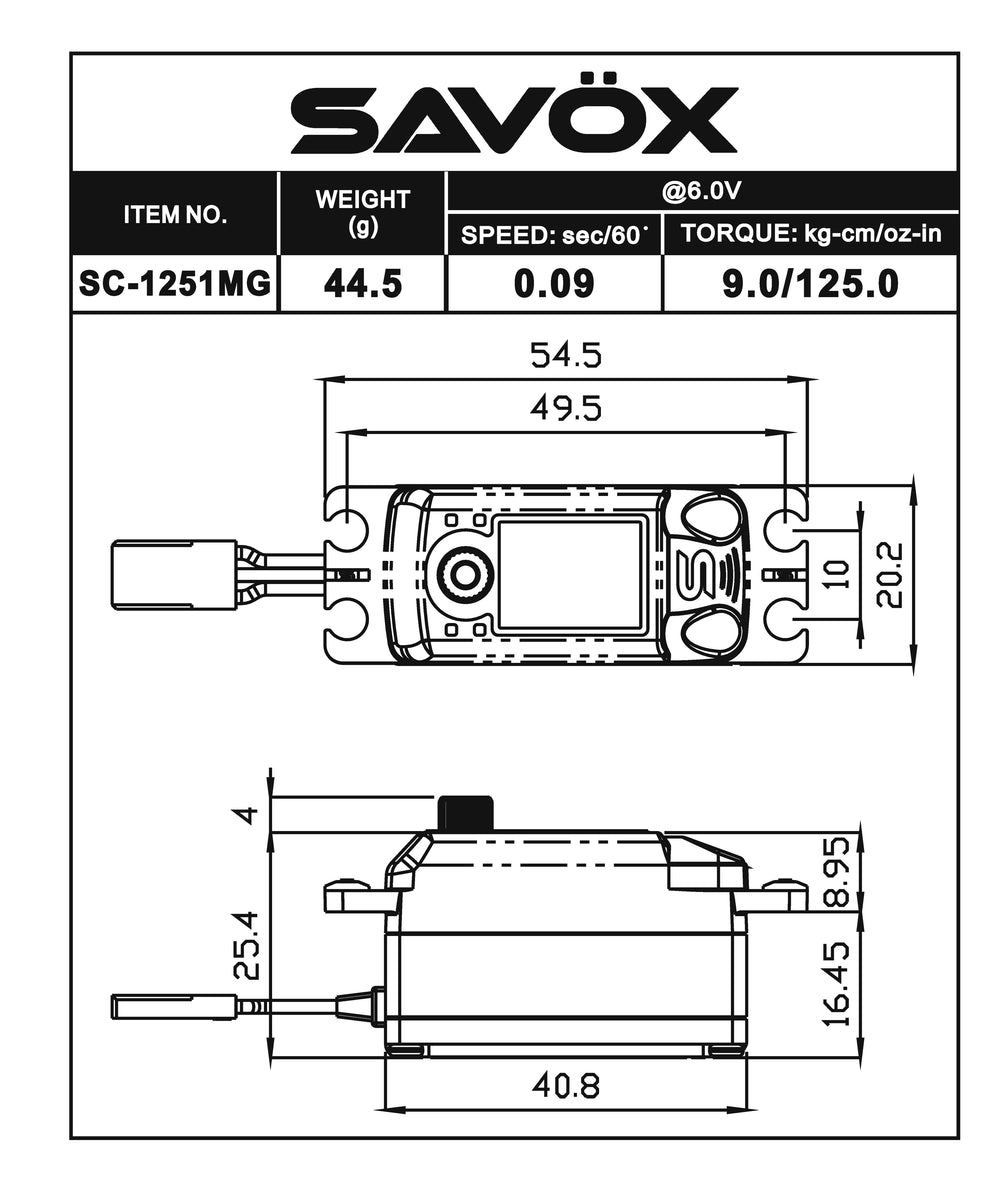

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 25.4
  • Weight: 44.5g

    • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 60 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 950 → 2050 µ second
  • Maximum Travel: Appx 160° (700 → 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed

    •
