Description

DISCONTINUED, PLEASE CLICK HERE FOR REPLACMENT!

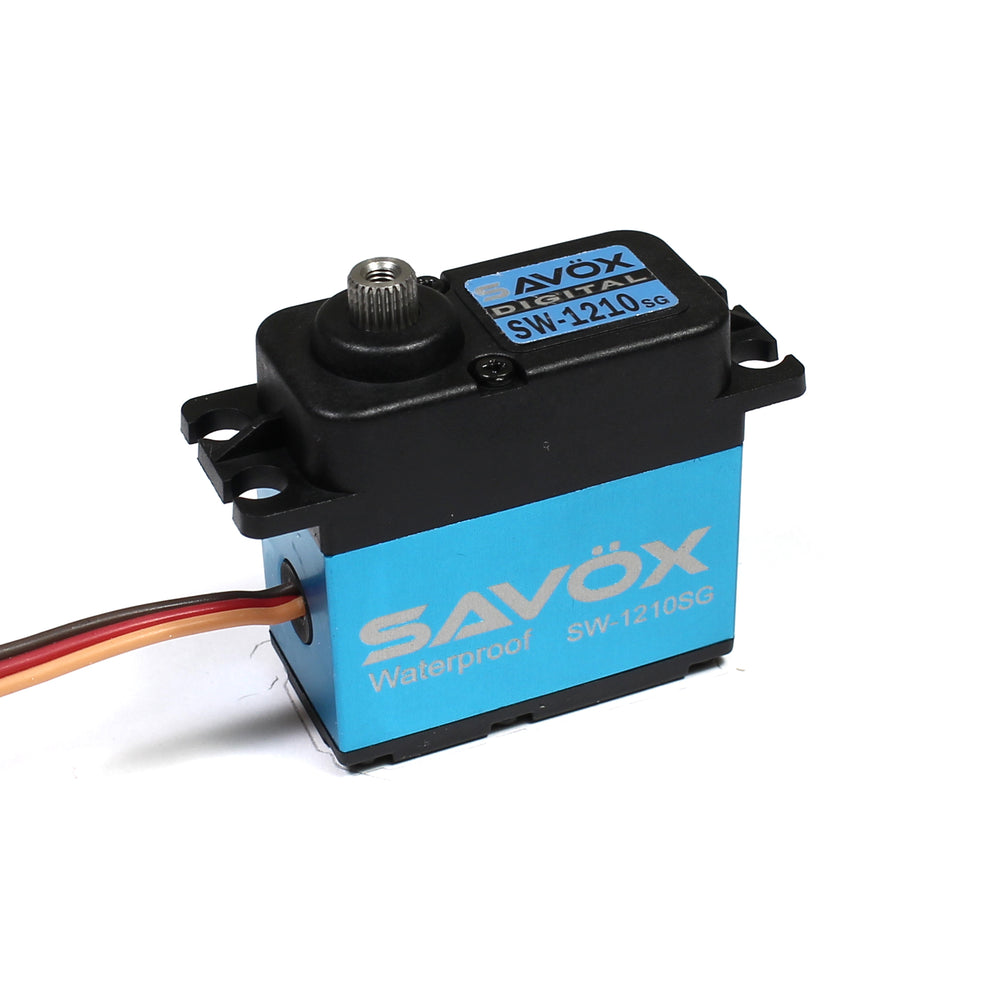

The SW-1210SG is the premier waterproof digital servo in the Savox Lineup. This coreless servo provides great torque and is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.

Features:

  • Strong unique steel gears provide durability and assurance.
  • Capable of HV operation.
  • Waterproof construction for harsh elements.
  • Ideal for cars, truck, and boats subject to water or snow.


    • Specifications:

  • Torque @6v - 20.0kg/277.7oz-in
  • Torque @7.4v - 32.0kg/444.4oz-in
  • Speed @6v - 0.15 sec/60 deg
  • Speed @7.4v - 0.13 sec/60 deg

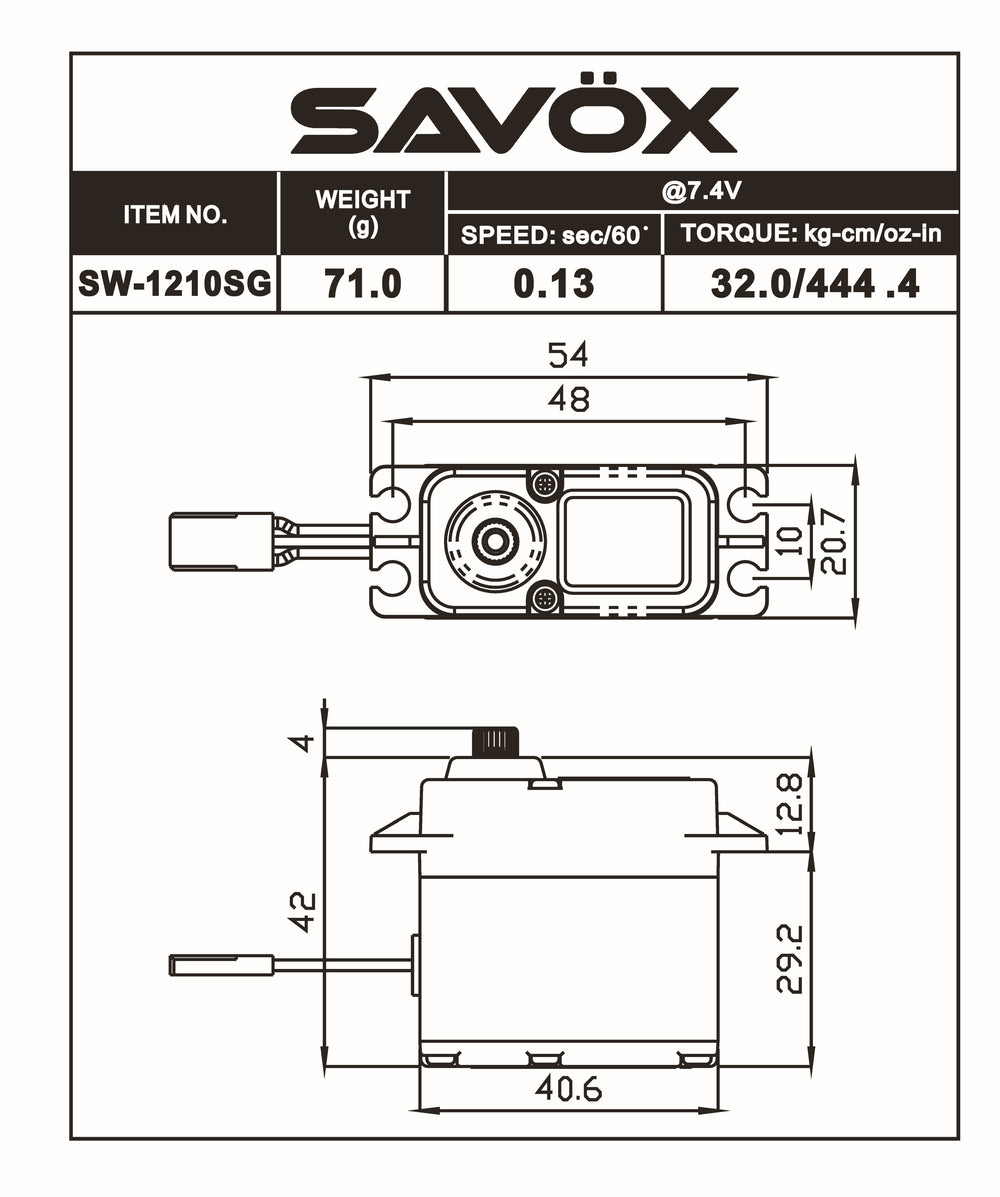

  • Dimensions L x W x H (mm): 40.6 x 20.7 x 42.0
  • Weight: 71.0g

    • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 120mA @6.0V, 150mA @7.4V
  • Stall Current (at locked): 6000mA @6.0 V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 150 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless

    •
