Description

DISCONTINUED, PLEASE CLICK HERE FOR REPLACMENT!

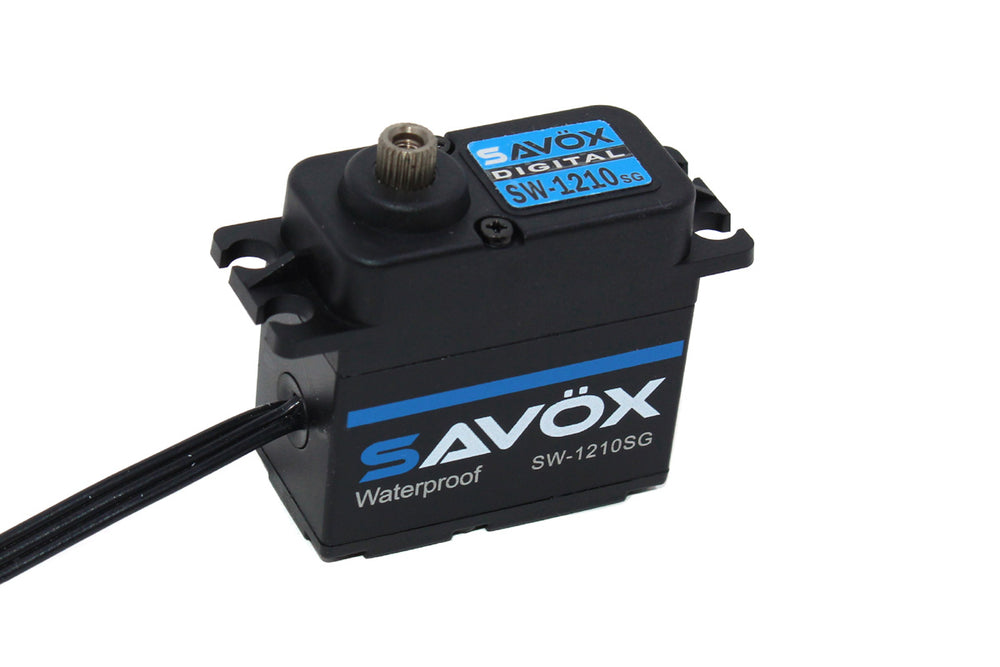

The SW-1210SG-BE is the premier waterproof digital servo in the Savox Lineup. This coreless servo provides great torque and is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.



Features:

Strong unique steel gears provide durability and assurance.

Capable of HV operation.

Waterproof construction for harsh elements.

Ideal for cars, truck, and boats subject to water or snow.



Specifications:

Torque @ 6v - 20.0kg/277.7oz-in

Torque @ 7.4v - 32.0kg/444.4oz-in

Speed @ 6v - 0.15 sec/60 deg

Speed @ 7.4v - 0.13 sec/60 deg

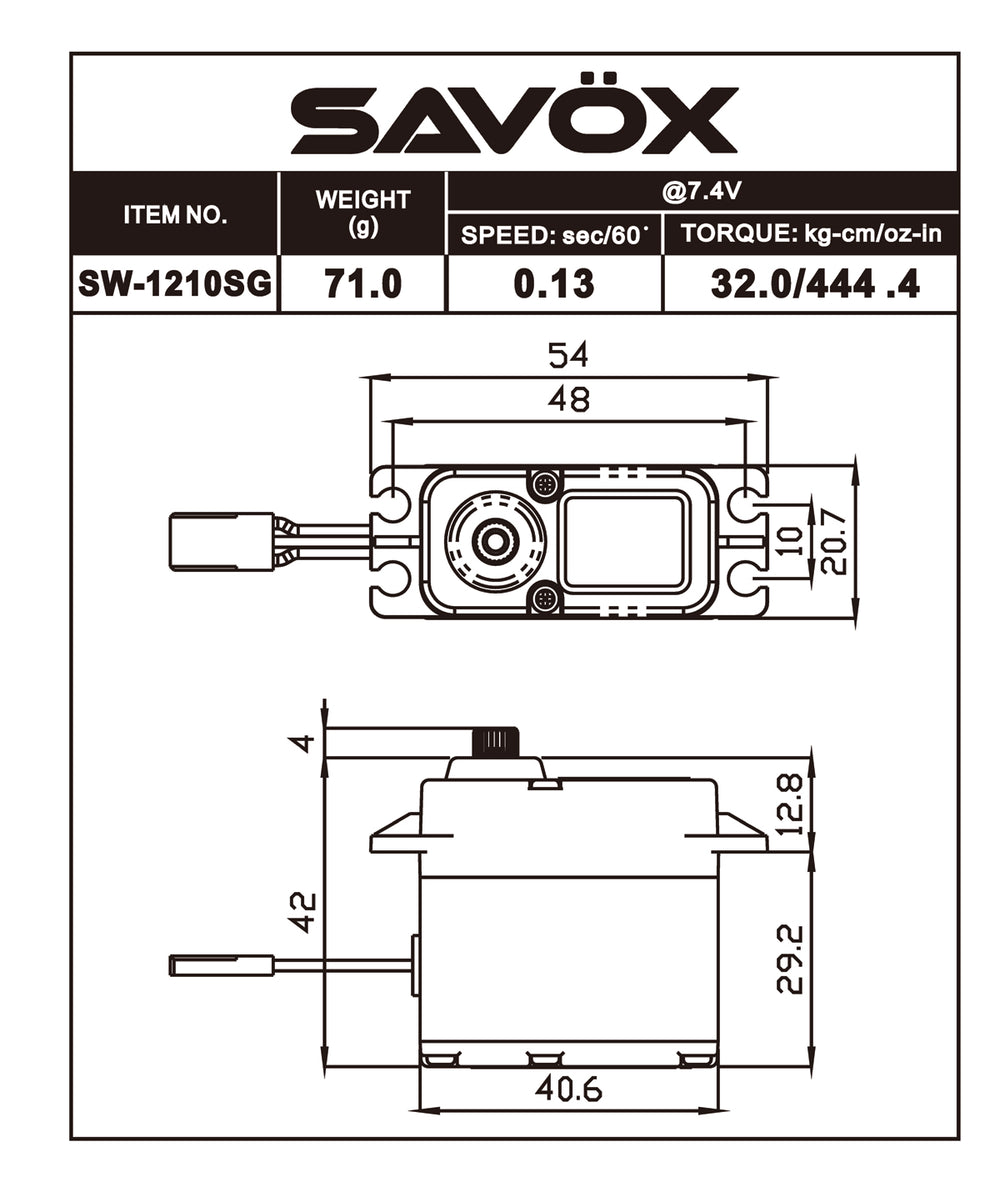

Dimensions L x W x H (mm): 40.6 x 20.7 x 42.0

Weight: 71g

Technical Details

Operating Temperature: 14° - 122°F (-10° - 50°C)

Running Current (no load): 120mA @6.0V, 150mA @7.4V

Stall Current (at locked): 6000mA @6.0 V, 7400mA @7.4V

Idle Current: 5mA @6.0V, 5mA @7.4V

Wire Length: 150 ± 5mm

Output Gear Spline: 25 Tooth

Bearings: 2BB

Operating Travel: 100° (1000 → 2000 µ second)

Neutral Position: 1500 µ second

Pulse Width Range: 800 → 2200 µ second

Maximum Travel: Appx 130° (900 → 2100 µ second)

Refresh Rate: 333 Hz

Motor Type: Coreless
