Description

DISCONTINUED, PLEASE CLICK HERE FOR REPLACMENT!

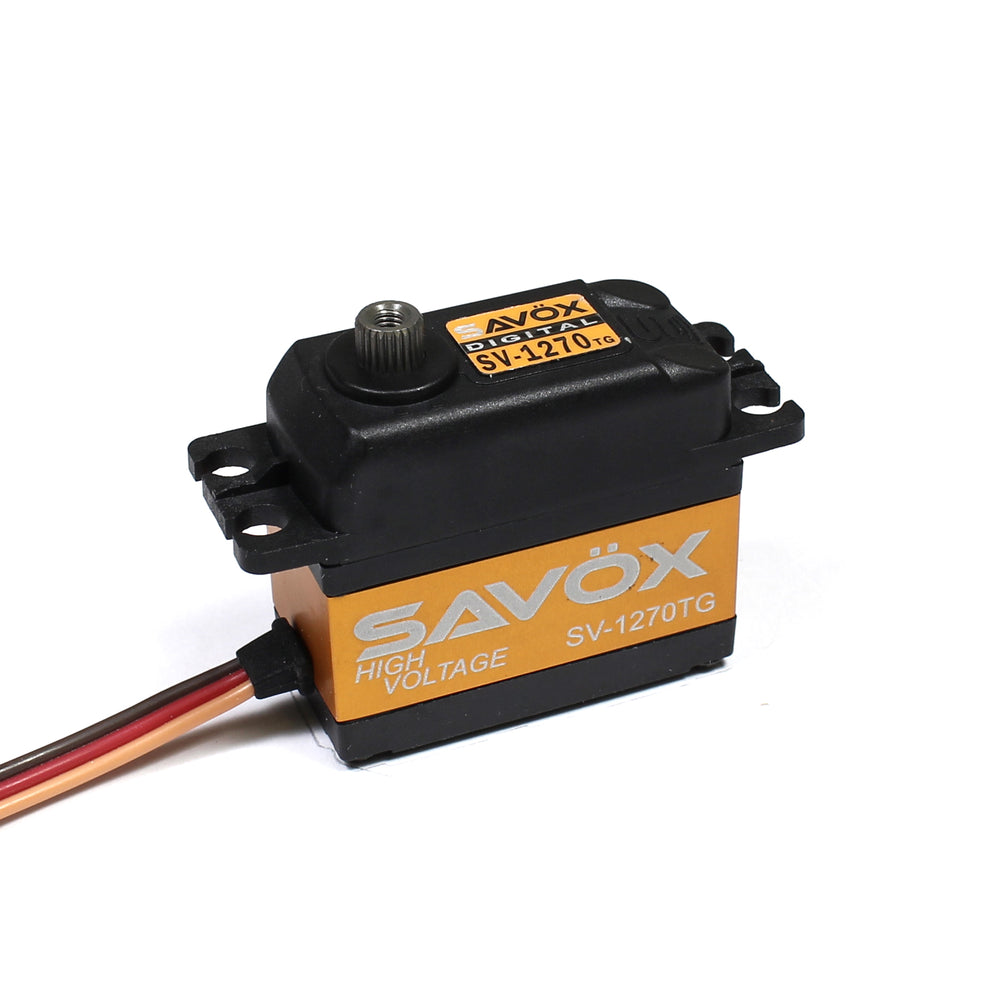

This is the Savox SV-1270TG Digital High Voltage "Monster Torque" Titanium Gear Servo. Built to handle extreme requirements, this servo delivers.

Features:

  • Super strong, precision made titanium gears provide durability that will survive heavy use.
  • Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications
  • Capable of HV operation.
  • The servo that racers desire.


    • Specifications:

  • Torque @6v - 26.0kg/361.1oz-in
  • Torque @7.4v - 35.0kg/486.1oz-in
  • Speed @6v - 0.14 sec/60 deg
  • Speed @7.4v - 0.11 sec/60 deg

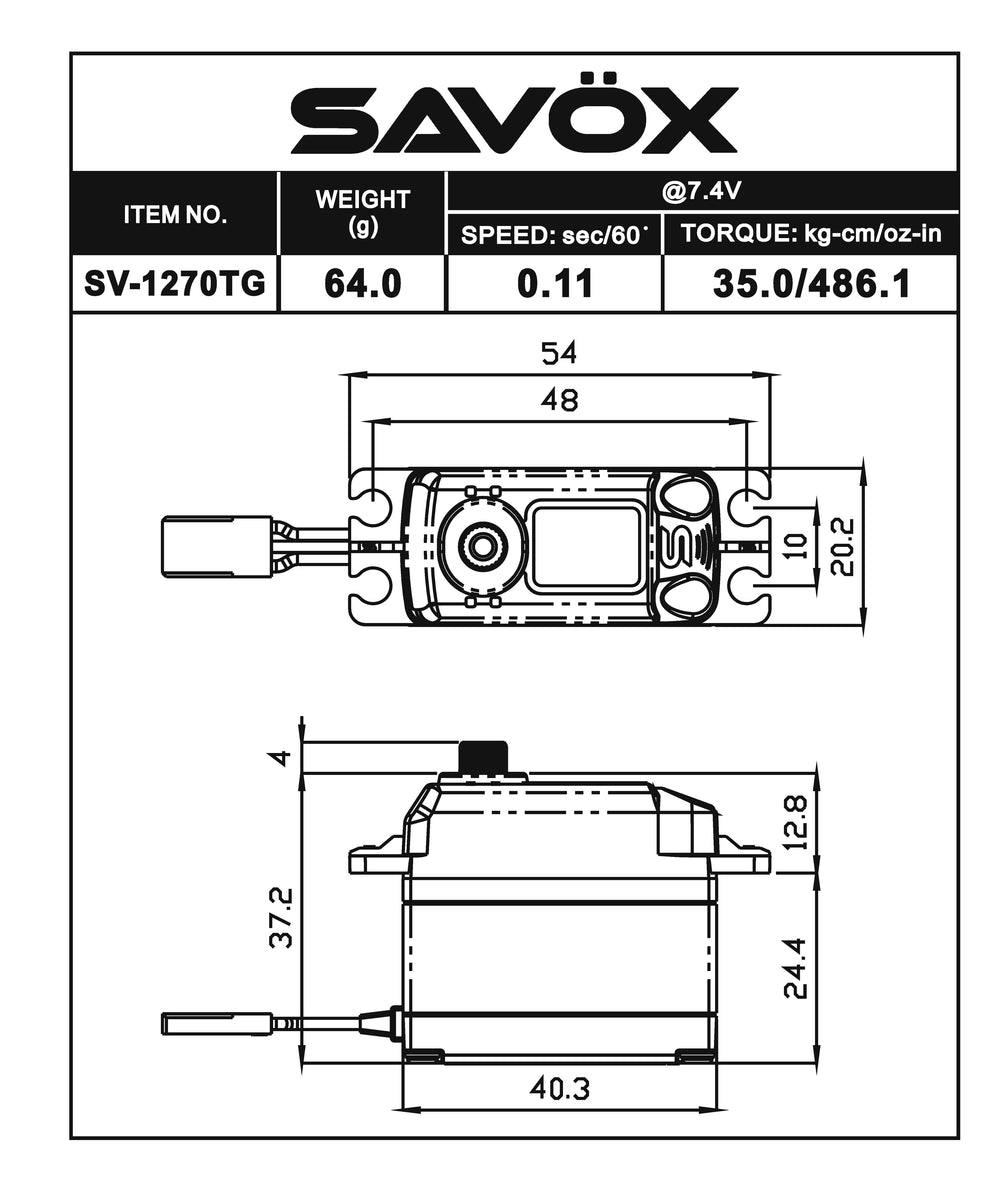

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
  • Weight: 56.0g

    • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 120mA @6.0V, 150mA @7.4V
  • Stall Current (at locked): 5500mA @6.0 V, 6800mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless

    • 1 Year Warranty

    Savox servos are backed with a warranty for 1 year after purchase (see warranty page for details)
