Savox

Discontinued - Use SV1257MGP - SV1257MG - High Voltage Mini Size Digital Servo .055/55.5 @7.4V

$68.99$84.99
  • SAVSV1257MG-High-Voltage-Micro-Size
  • SAVSV1257MG-High-Voltage-Micro-Size
  • Discontinued - Use SV1257MGP - SV1257MG - High Voltage Mini Size Digital Servo .055/55.5 @7.4V

Savox

Discontinued - Use SV1257MGP - SV1257MG - High Voltage Mini Size Digital Servo .055/55.5 @7.4V

$68.99$84.99
1

Description

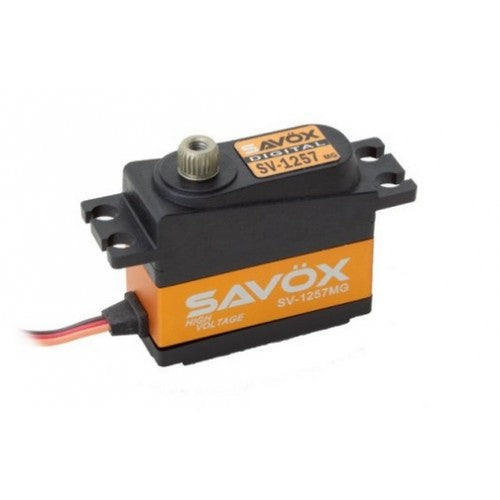

The SV-1257MG mini-sized, metal-geared, digital servo is ideal for those that need a fast mini servo, but prefer to operate it using a higher voltage such as a LiPo receiver battery as a power source.

Features:

  • Steel gear train provide durability against heavy use.
  • Capable of HV operation.
  • Aluminum middle case allows for cooler operating temperatures.


    • Specifications:

  • Torque @6v - 2.5kg/34.7oz-in
  • Torque @7.4v - 4.0kg/55.5oz-in
  • Speed @6v - 0.07 sec/60 deg
  • Speed @7.4v - 0.055 sec/60 deg

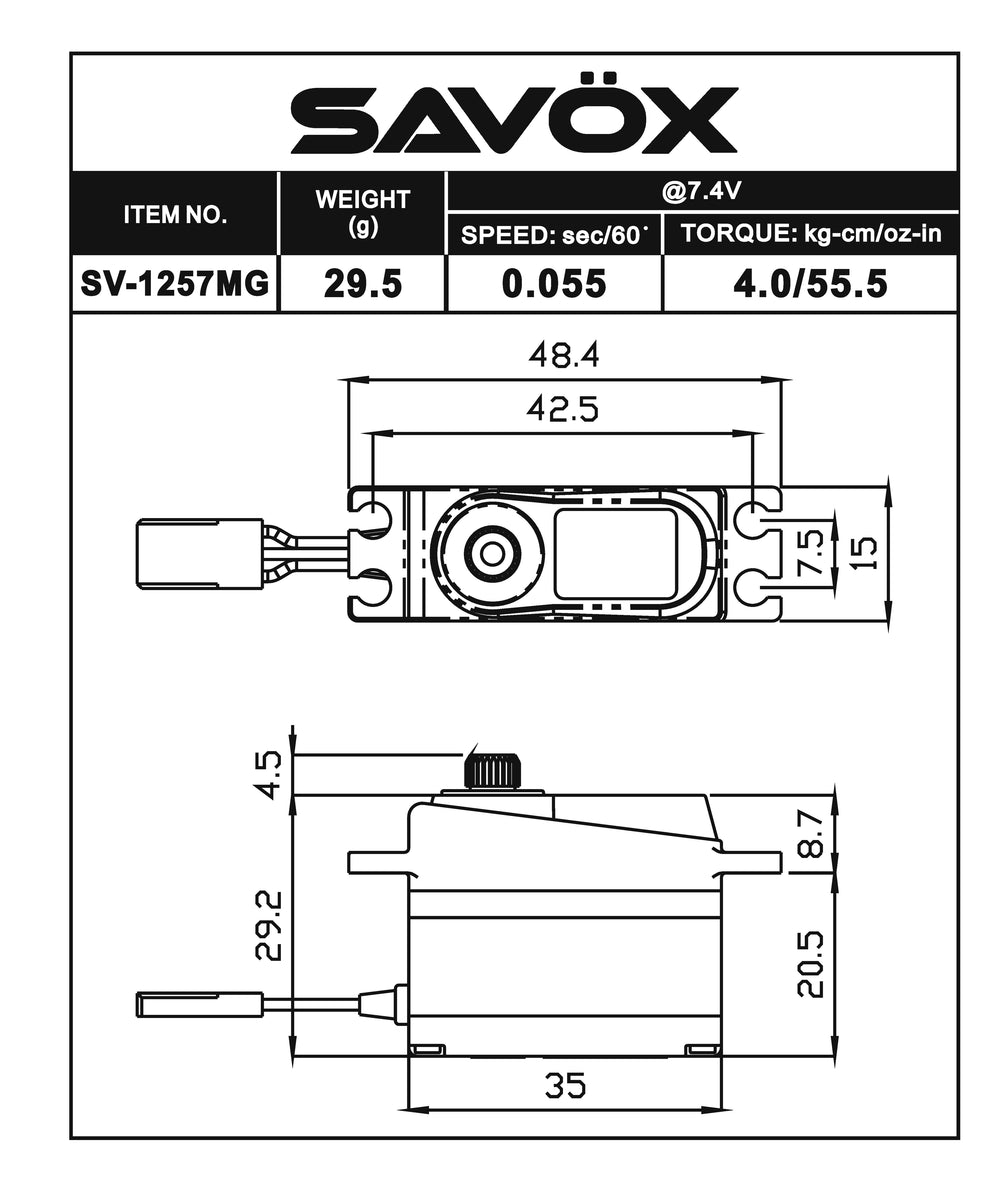

  • Dimensions L x W x H (mm): 35.0 x 15.0 x 29.2
  • Weight: 29.5g

    • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 100mA @6.0V, 120mA @7.4V
  • Stall Current (at locked): 1600mA @6.0V, 2000mA @7.4V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 110° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 154° (800 → 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless

    • 1 Year Warranty

    Savox servos are backed with a warranty for 1 year after purchase (see warranty page for details)
