Savox

SH0257MG - DISCONTINUED - Please See SH0257MGP for Replacement

$34.99$42.99
  • SAVSH0257MG-Micro-Digital-Mg-Servo-.09-30
  • SAVSH0257MG-Micro-Digital-Mg-Servo-.09-30
  • SH0257MG - DISCONTINUED - Please See SH0257MGP for Replacement

Savox

SH0257MG - DISCONTINUED - Please See SH0257MGP for Replacement

$34.99$42.99
1

Description

DISCONTINUED, PLEASE CLICK HERE FOR REPLACMENT!

The Savox SH-0257MG metal-gear, high-torque, digital, micro servo has more output torque than larger servos without sacrificing speed.

Features:

  • Metal gear train ensures durability and longevity.
  • Aluminum middle case allows for cooler operating temperatures.
  • Ideal for small planes, and 450 size helicopters.


    • Specifications:

  • Torque @4.8v - 1.8kg/25.0oz-in
  • Torque @6v - 2.2kg/30.6oz-in
  • Speed @4.8v - 0.13 sec/60 deg
  • Speed @6v - 0.09 sec/60 deg

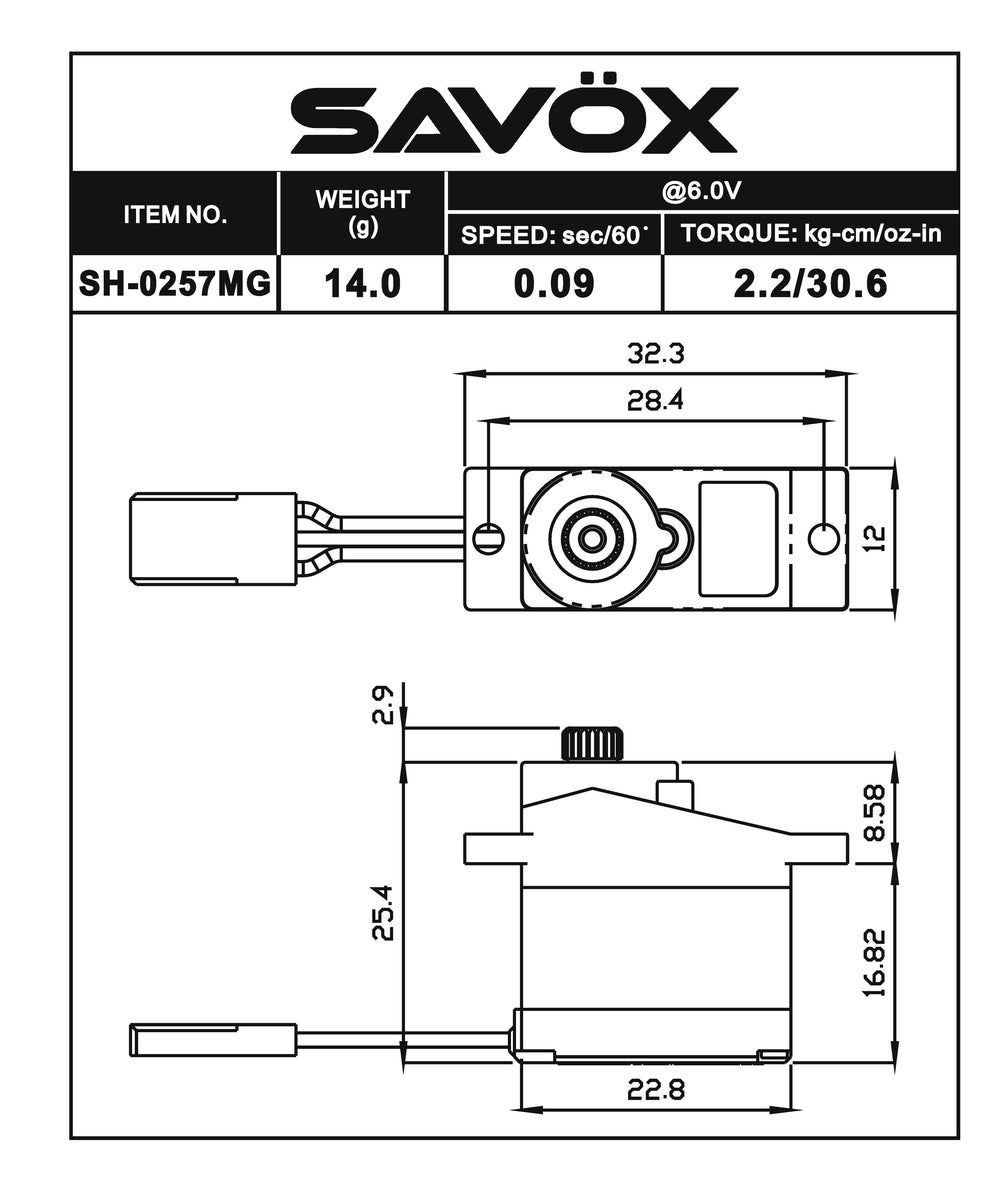

  • Dimensions L x W x H (mm):22.8 x 12.0 x 25.4
  • Weight: 14.0g

    • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 90° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 700 → 2300 µ second
  • Maximum Travel: Appx 150° (700 → 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed

    • 1 Year Warranty

    Savox servos are backed with a warranty for 1 year after purchase (see warranty page for details)
