Savox

SC1267SG - DISCONTINUED - Please See SC1267SG-BE for Replacement

$88.99$109.99
  • SAVSC1267SG-High-Torque-Digital-Servo
  • SAVSC1267SG-High-Torque-Digital-Servo
  • SC1267SG - DISCONTINUED - Please See SC1267SG-BE for Replacement

Savox

SC1267SG - DISCONTINUED - Please See SC1267SG-BE for Replacement

$88.99$109.99
1

Description

DISCONTINUED, PLEASE CLICK HERE FOR REPLACMENT!

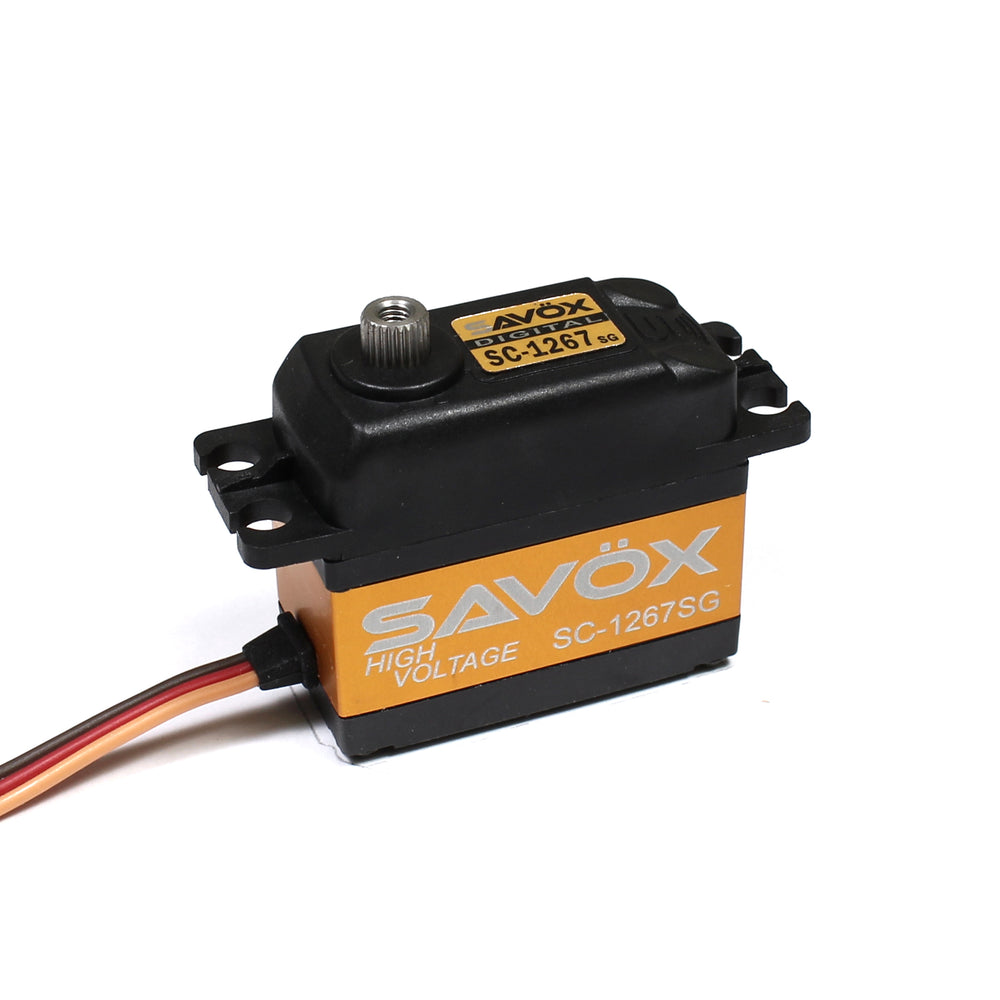

The SC-1267SG servo offers you the complete package. With good speed and torque, this servo makes a great replacement for those looking to upgrade from a standard servo.

Features:

  • Super strong and precision made unique steel gears provide durability and survive heavy use.
  • Capable of HV operation.
  • Good speed and torque for numerous applications.
  • Great replacement for RTR vehicles and other applications.

    • Specifications:
  • Torque @ 6v - 13.0kg/180.5oz-in
  • Torque @ 7.4v - 20.0kg/277.7oz-in
  • Speed @ 6v - 0.11 sec/60 deg
  • Speed @ 7.4v - 0.095 sec/60 deg

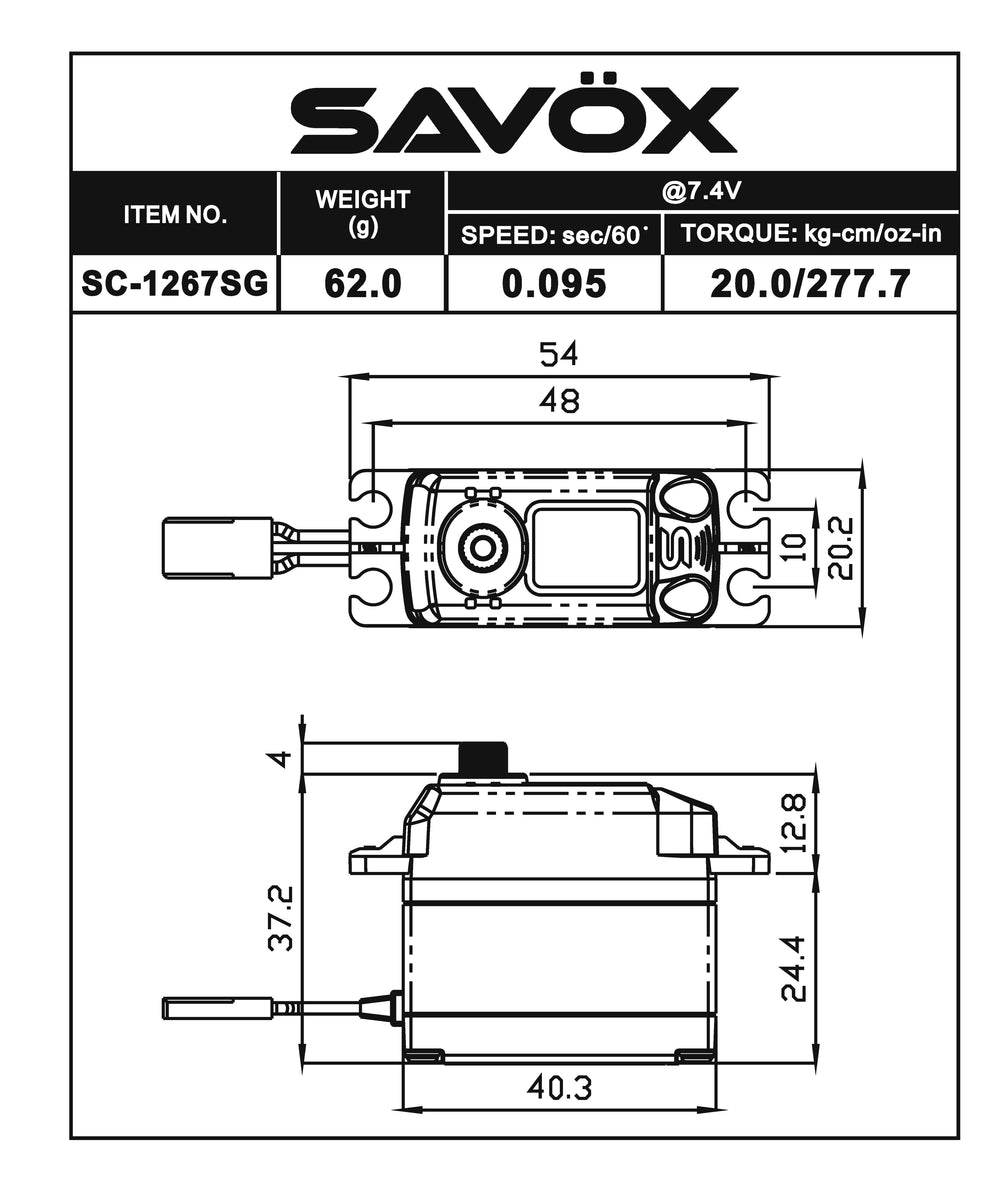

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
  • Weight: 62.0g

    • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 100mA @4.8V, 120mA @6.0V, 150mA @7.4V
  • Stall Current (at locked): 2500mA @4.8V, 3000mA @6.0V, 3500mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V, 5mA @7.4V
  • Wire Length: 200 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless

    • 1 Year Warranty

    Savox servos are backed with a warranty for 1 year after purchase (see warranty page for details)
