Savox

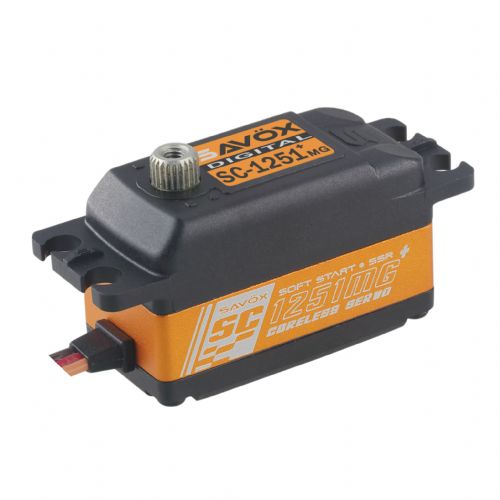

SC1251MGP - Low Profile Digital Servo w/ Soft Start, 0.09sec / 125oz @ 6V

$73.99$84.99
  • SAVSC1251MGP-Low-Profile-Digital-Servo
  • SAVSC1251MGP-Low-Profile-Digital-Servo
  • SC1251MGP - Low Profile Digital Servo w/ Soft Start, 0.09sec / 125oz @ 6V

Savox

SC1251MGP - Low Profile Digital Servo w/ Soft Start, 0.09sec / 125oz @ 6V

$73.99$84.99
1

Description

The SC-1251MG Plus is a high speed, low profile servo which combines leading edge technology with metal gear train to make an ideal option when space or weight is a concern.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Metal gear train ensures durability under harsh situations.
  • Aluminum case provides cooler operating temperatures.

    • Specifications:

  • Torque @ 4.8v - 7.0kg/97.2oz-in
  • Torque @ 6v - 9.0kg/125.0oz-in
  • Speed @ 4.8v - 0.10 sec/60 deg
  • Speed @ 6v - 0.09 sec/60 deg

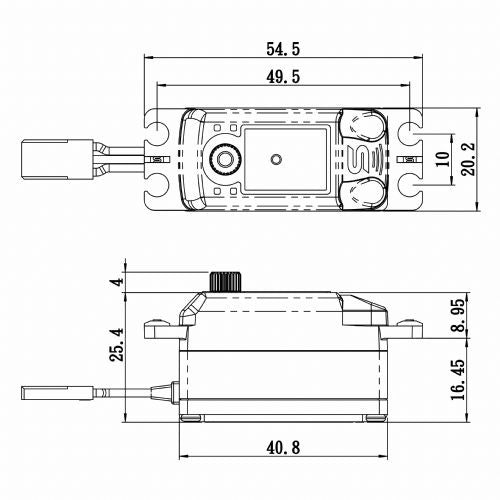

  • Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
  • Weight: 44.5g

    • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 950 → 2050 µ second
  • Maximum Travel: Appx 160° (700 → 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed

    • 1 Year Warranty

    Savox servos are backed with a warranty for 1 year after purchase (see warranty page for details)
