Description

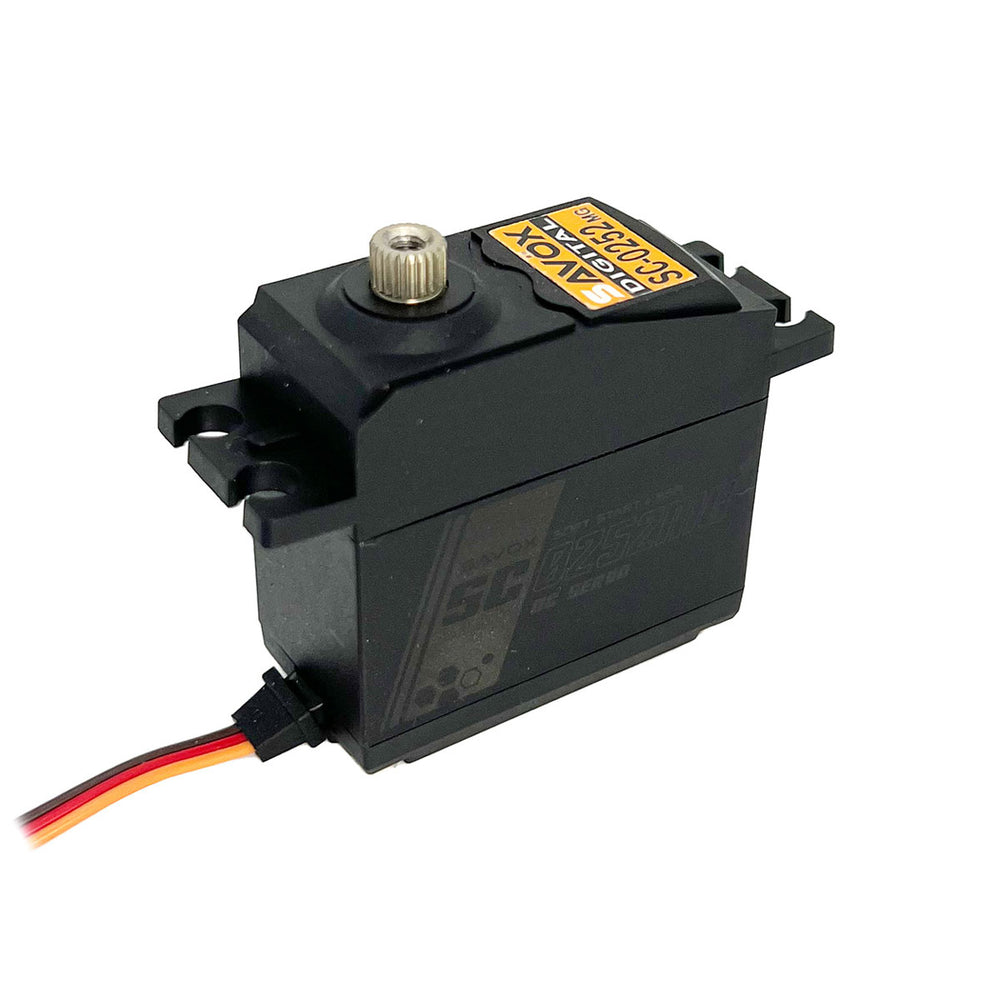

The Savox SC-0252MG is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

Metal gear train ensures durability under harsh situations.

Higher torque output than standard servos.

Ideal for 30-60 size aircraft, and some car applications.

Specifications:

Torque @ 4.8v - 7.2kg/100.0oz-in

Torque @ 6v - 10.5kg/145.8oz-in

Speed @ 4.8v - 0.23 sec/60 deg

Speed @ 6v - 0.19 sec/60 deg

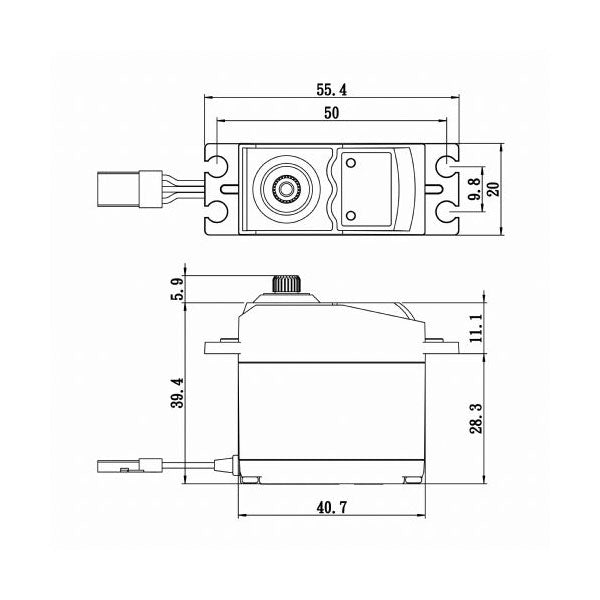

Dimensions L x W x H (mm): 40.7 x 19.6 x 39.4

Weight: 49.0g

Technical Details

Operating Temperature: 14° - 122°F (-10° - 50°C)

Running Current (no load): 300mA @4.8V, 330mA @6.0V

Stall Current (at locked): 1400mA @4.8V, 1700mA @6.0V

Idle Current: 6mA @4.8V, 6mA @6.0V

Wire Length: 300 +/- 5mm

Output Gear Spline: 25 Tooth

Bearings: 2BB

Operating Travel: 120° (1000 → 2000 µ second)

Neutral Position: 1500 µ second

Pulse Width Range: 800 → 2200 µ second

Maximum Travel: Appx 164° (800 → 2200 µ second)

Refresh Rate: 240 Hz

Motor Type: Brushed
