Description

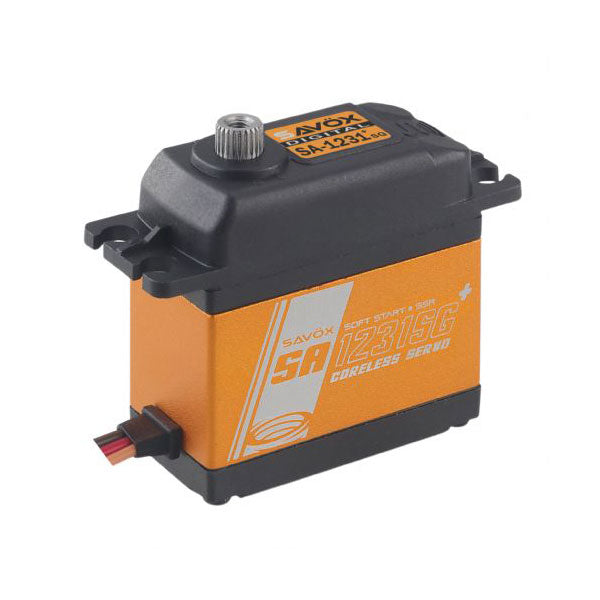

The Savox SA-1231SG+ High Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

Extremely strong unique steel gears ensure long-life and durability.

Minimized backlash designed for aircraft use, but great for Monster Truck and crawling use.

Aluminum middle case to help with cooler operating temperatures.

Slightly taller case design.

Specifications:

Torque @ 4.8V - 28.0kg / 388.8oz-in

Torque @ 6V - 32.0kg / 444.4oz-in

Speed @ 4.8V - 0.18 sec / 60 deg

Speed @ 6V - 0.14 sec / 60 deg

Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9

Weight: 79g

Technical Details

Operating Temperature: 14° - 122°F (-10° - 50°C)

Running Current (no load): 180mA @4.8V, 250mA @6.0V

Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V

Wire Length: 200 +/- 5mm

Output Gear Spline: 25 Tooth

Bearings: 2BB

Operating Travel: 100° (1000 → 2000 µ second)

Neutral Position: 1500 µ second

Pulse Width Range: 800 → 2200 µ second

Maximum Travel: Appx 130° (900 → 2100 µ second)

Refresh Rate: 333 Hz

Motor Type: Coreless
