Savox

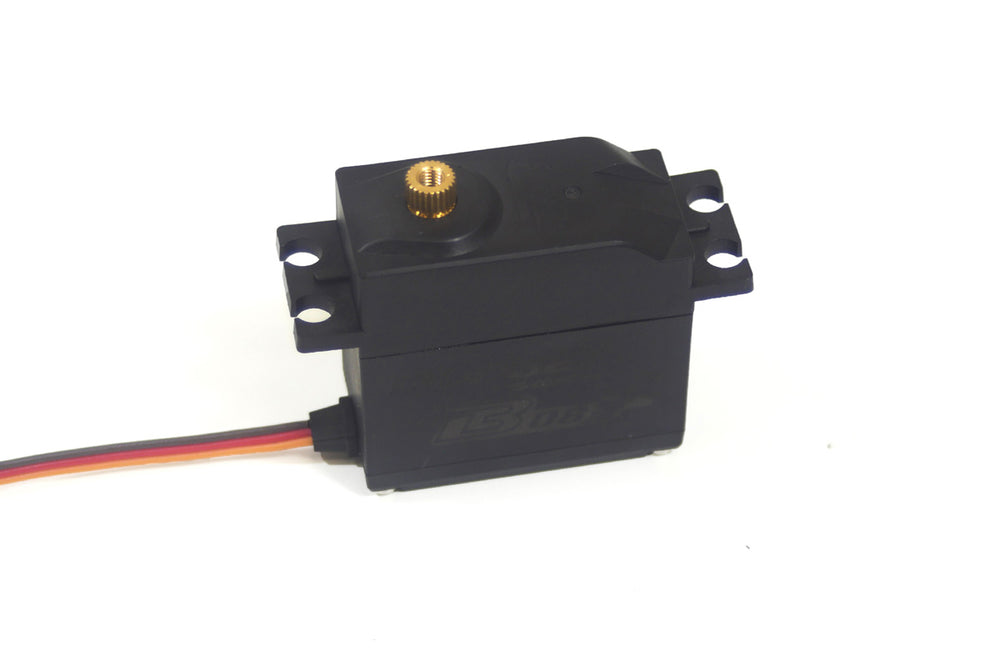

B08KG - Budget Analog Servo, .15 / 111oz-in (8kg-cm) @6v, Standard Size, Metal Gears

$18.00
  • SAVB08KG-Budget-Analog-Servo-.15-8kg-cm
  • SAVB08KG-Budget-Analog-Servo-.15-8kg-cm
  • B08KG - Budget Analog Servo, .15 / 111oz-in (8kg-cm) @6v, Standard Size, Metal Gears

Savox

B08KG - Budget Analog Servo, .15 / 111oz-in (8kg-cm) @6v, Standard Size, Metal Gears

$18.00
1

Description

"Budget by Savox" analog servos offer the same level of quality as the digital servo line, but at a much lower price, making them a great value!

Specifications:
Torque @ 4.8v - 6.0kg / 83.3oz-in
Torque @ 6v - 8.0kg / 111.1oz-in
Speed @ 4.8v - 0.19 sec / 60 deg
Speed @ 6v - 0.15 sec / 60 deg

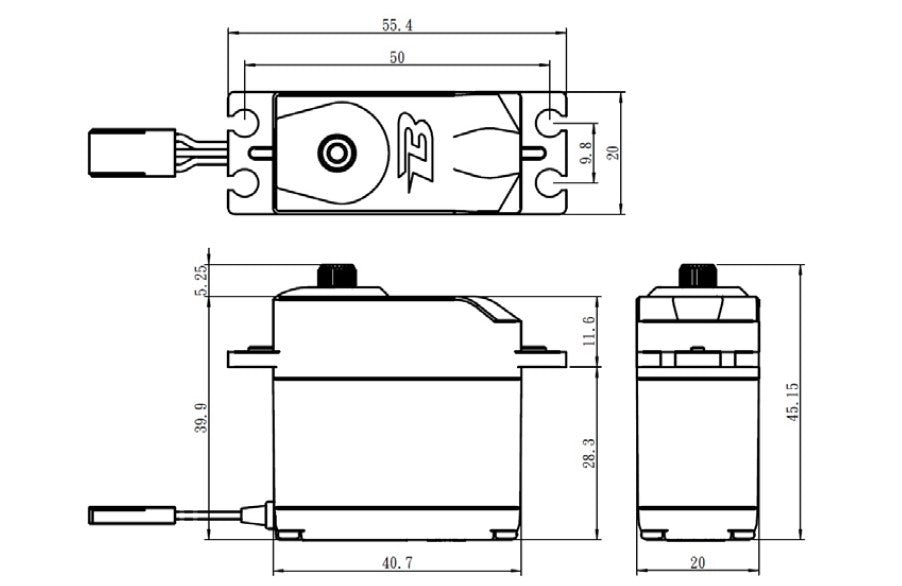

Dimensions L x W x H (mm): 40.7 x 20 x 45.2
Weight: 52.0g

Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 220mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 1300mA @4.8V, 1600mA @6.0V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 250 +/- 10mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 110° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 700 → 2100 µ second
  • Maximum Travel: Appx 165° (700 → 2100 µ second)
  • Refresh Rate:  333Hz
  • Motor Type: Brushed

    • 1 Year Warranty

    Savox servos are backed with a warranty for 1 year after purchase (see warranty page for details)
