Description

The Savox SV-0220MG is a budget-friendly, metal-geared, digital standard servo capable of operating on high voltage.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

Metal gear train ensures durability and longevity.

Capable of high voltage use.

Specifications:

Torque @ 6V - 6.5kg/90.3oz-in

Torque @ 7.4V - 8.0kg/111.1oz-in

Speed @ 6V - 0.16 sec/60 deg

Speed @ 7.4V - 0.13 sec/60 deg

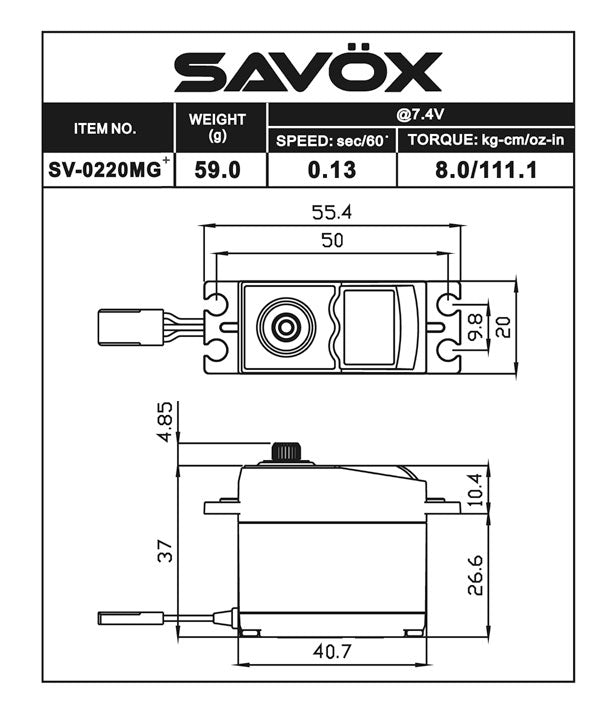

Dimensions L x W x H (mm): 40.7 x 20.0 x 37.0

Weight: 59.0g

Technical Details

Operating Temperature: 14° - 122°F (-10° - 50°C)

Running Current (no load): 100mA @6.0V, 120mA @7.4V

Stall Current (at locked): 1500mA @6.0 V, 1800mA @7.4V

Idle Current: 5mA @6.0V, 5mA @7.4V

Wire Length: 250 ± 5mm

Output Gear Spline: 25 Tooth

Bearings: 1BB

Operating Travel: 120° (1000 → 2000 µ second)

Neutral Position: 1500 µ second

Pulse Width Range: 800 → 2200 µ second

Maximum Travel: Appx 164° (800 → 2200 µ second)

Refresh Rate: 240 Hz

Motor Type: Brushed
